Clover IntekBox Text Inserter HD 4K TVI AHD CVI Coax Camera solution - Intekbox

JMSC IntekBox Text Inserter HD 4K TVI AHD CVI Coax Camera solution

$529.00 USD
SKU: PVTS-TAC-JM

This item is Special for the JMSC POS w/ Coax Camera Solution

Risk-Free Order. Return it within three months and get a full refund

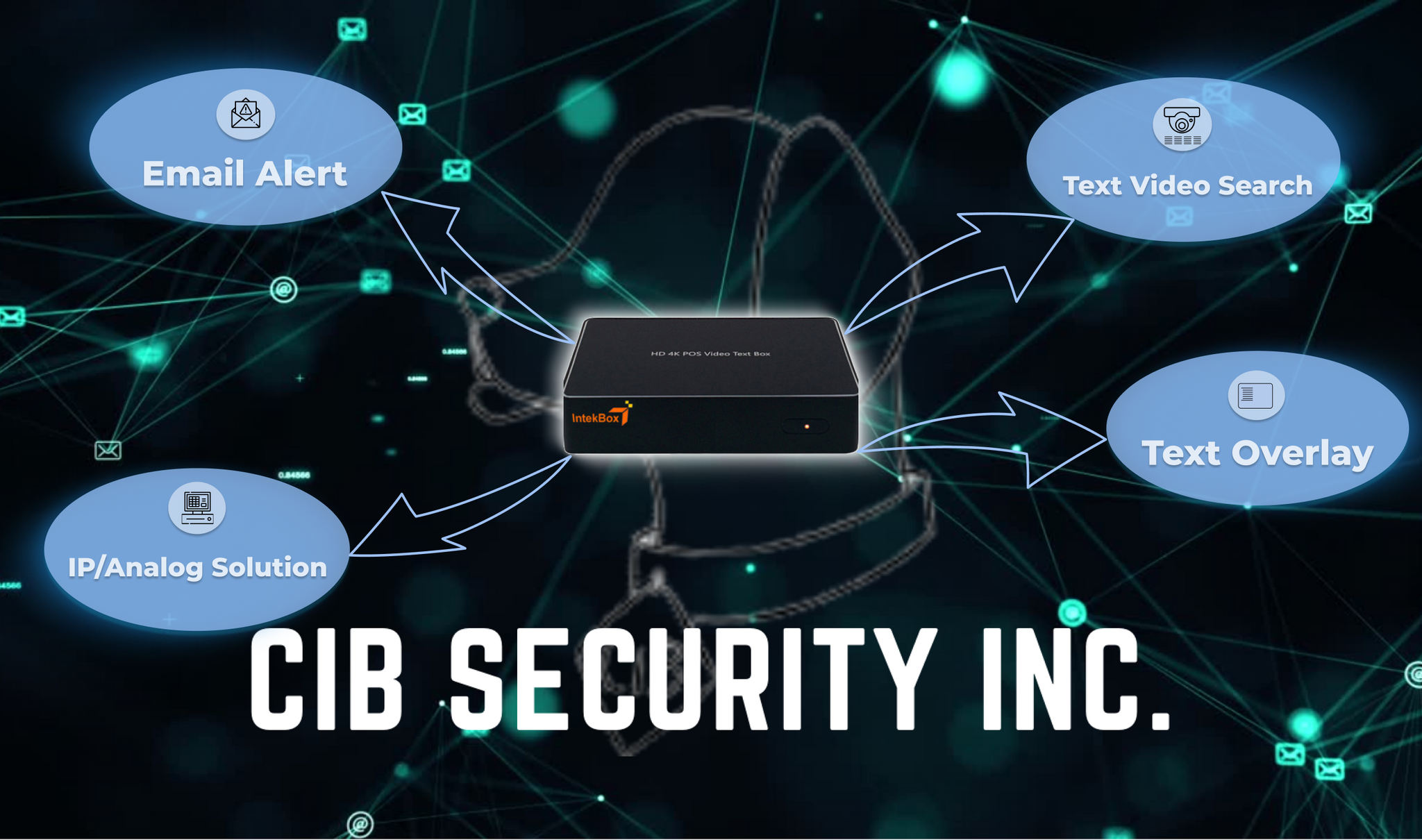

  1. Supports HD 4K TVI/AHD/CVI Coax Camera
  2. Advanced Text Overlay
  3. Smart Abnormal Event Email Alert in Real Time
  4. Video Text Searchable with Keyword
  5. PC Central Management
  6. Graph User Interface
  7. Plug and Play, easy to install
POS and Cash Register
Supports JMSC POS.

4K/1080P IP Video Resolution
The system is fully compatible with HD 4K to 1080P TVI/AHD/CVI Camera.

Graph User Interface
Linux OS platform, reliable. Graphical user interface, easy to operate and set up the system.


Text Overlay
IntekBox text overlay not only has most of the functions of a text inserter, but also has some special unique features:
  • Provides four character font sizes.
  • Six character colors: black, white, red, yellow, blue and orange.
  • Display area up to 48 rows by 120 columns.
  • Easily move text area by mouse.
Email Alert
Usually, viewing a certain transaction video is a time-consuming and headache mission. People have to watch the live view or recorded video all the time. Now IntekBox email function will help you to solve this problem at all.
  • Predefined any exception keyword, like No Sale, Void, Cancel, Delete etc., or items name.
  • Smart trigger email alert with exception keyword.
  • Email content includes Date, Time, Register Name and data text.
  • Easily and accurately view transaction video.
PC Central Management System
        PC CMS software brings your all IntekBox devices operation together:
  • Multiple IntekBox devices management.
  • Configures IntekBox device and POS camera over network.
  • Video live view and video text record management(Optional).
  • Search transaction text and video(Optional).
Cash Drawer Safety
This feature will monitor the cash drawer opening and closing status, no matter how the cash drawer is opened or closed each time, the open and close status text message will be inserted to the video. And an alert message will be sent to manager when the cash drawer is abnormally opened or closed. You will never worry about someone stealing money from a cash drawer anymore!

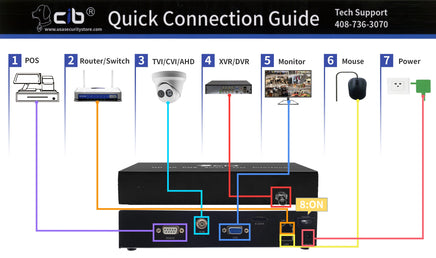

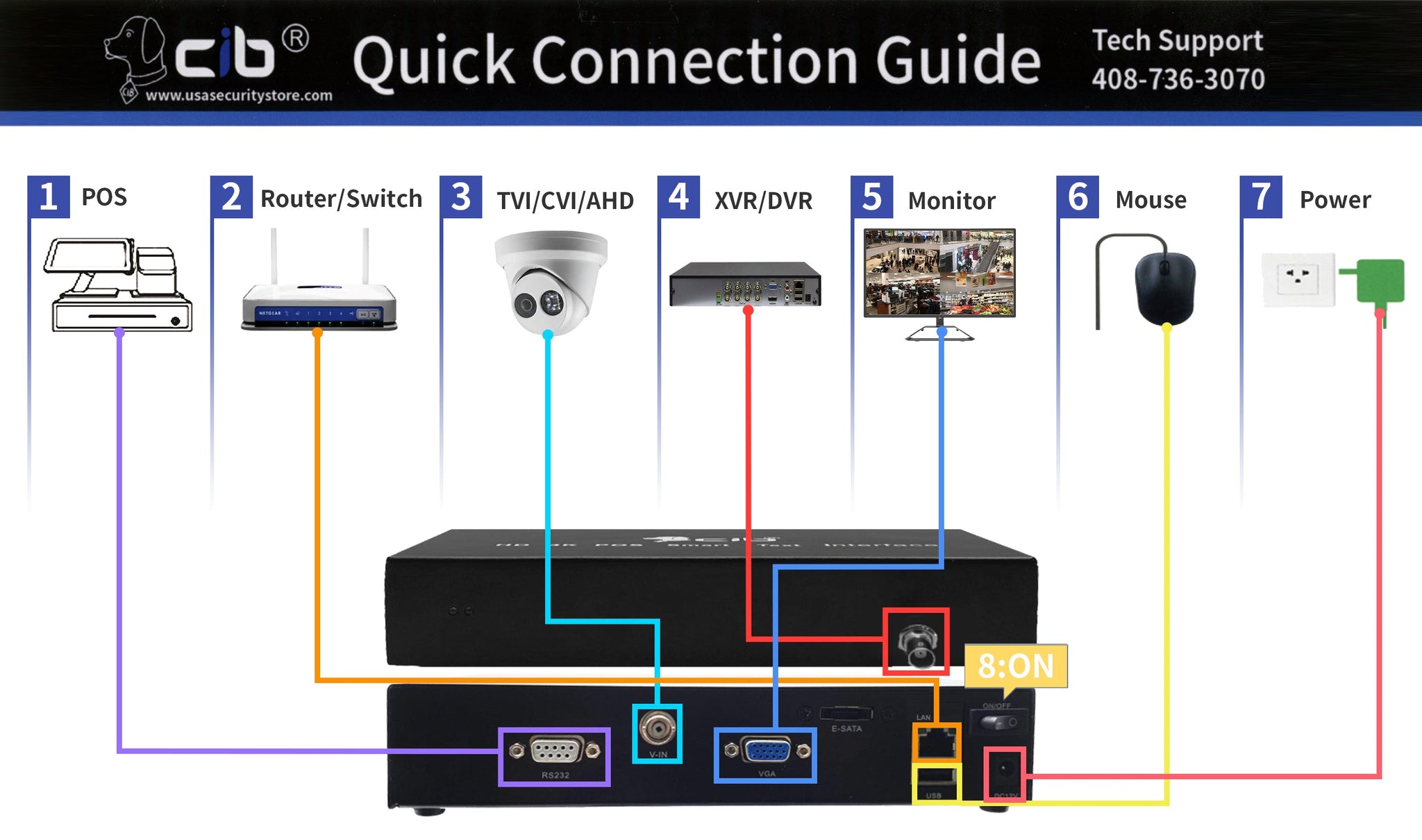

ip-connection-guide

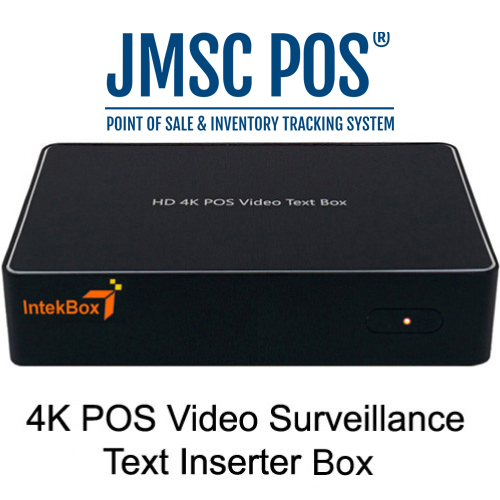

  1. One IntekBox HD 4K Analog POS Text Inserter Box
  2. One RS232 Cable
  3. DC 12V 1A Power Supply
  4. One set wall mount
  5. Three Years Fully Warranty in USA
OS Linux
BNC Video Input 1-CH
Input BNC Camera HD 4K to 1080P TVI / CVI / AHD Coax Analog Camera
POS GILBARCO Passport, Verifone Ruby2 Topaz, JMSC, SAM4S, CASIO, LOC, pcAmerica, Keystroke, StoreTender, POSitouch, AST, L-BOSS, MicroSoft Dynamic, MODISoft, NRS, Focus etc.
Input Resolution 8MP/6MP/5MP/4MP/3MP/1080p
IP Video Output 1-CH
Output Video Standard NTSC
Plug and Play Yes
Number of Rows 1-48 Rows
Number of Column 1-120 Columns
Character Color Red, Yellow, Orange, Blue, Black, White
Character Font Size 4 Levels
Line Processing Compress, Justification, Scroll Delay
Auto Scrolling Yes
Overlay Area Size Adjustable
Overlay Area Adjustable
RS232 Yes
Network Port 1 x RJ-45 10/100M     TCP/IP/UDP
USB Port 2xUSB2.0
Exceptions VOID, Cancel, No Sale, Discount, Coupon, Return, Delete, Price Change, or Customized define.
Exception Operator >, <, >=, <=
Alert Email, Buzzer, Phone Notification, Color Switch
XVR/NVR/CMS Supports All ONVIF Compatible XVR/NVR/CMS
Input Power DC 12V~2A
Operating Temperature 10" ~ 40" (50"~104")
Dimension 7” x 5” x 2”
Weight ≤ 3lb
supported pos
